Comparative effects of graston technique and foam roller on the flexibility of hamstring muscle
2 Department of Physiotherapy, United College of physical therapy, Karachi, Pakistan
3 Department of Physiotherapy, University of Sialkot, Pakistan
4 Special Olympics Pakistan, Karachi, Pakistan
5 Department of Physiotherapy, National Medical Center, Karachi, Pakistan
6 Department of Physiotherapy, Asma Medical Center, Karachi, Pakistan
7 Department of Physiotherapy, Physical Wellness Centre, Karachi, Pakistan
Received: 29-Jul-2021 Accepted Date: Aug 12, 2021 ; Published: 25-Aug-2021, DOI: 10.37532/1897-2276.2021.16(1).34
This open-access article is distributed under the terms of the Creative Commons Attribution Non-Commercial License (CC BY-NC) (http://creativecommons.org/licenses/by-nc/4.0/), which permits reuse, distribution and reproduction of the article, provided that the original work is properly cited and the reuse is restricted to noncommercial purposes. For commercial reuse, contact email@example.com
Background: The incidence of hamstring tightness is one of the typical finding in the individuals with sedentary life style. The objective of this study was to find out the comparative effect of Graston technique and Foam roller on the flexibility of hamstring muscle.
Methods: A total of 30 subjects were randomized into 2 equal groups. The patients in group A received Graston Technique while Group B was treated with Foam Roller. Treatment duration was 2 sessions per week for six weeks. Data was analyzed using IBM-SPSS version 23.0. Mean ± SD reported for flexibility of hamstring muscle at day-01 and day-12. Paired sample t-test was used for within group analysis. One-way analysis of variance was also done to compare the post treatment scores.
Results: In Mysofascial Release group the mean flexibility at day-01 was 56.73 ± 8.97 and at day-12 it was 65.87 ± 9.49. In Graston group the mean flexibility at day-01 was 52.60 ± 9.14 and at day-12 it was 65.47 ± 9.41, results showed 12.86 units significant increase was observed in flexibility of hamstring muscle at day-12 with p-value less than 0.01.
Conclusion: It has been concluded from the study that Graston technique was found to be more effective as compared to muscle foam roller.
Graston technique, foam roller, flexibility
The most significant component of physical fitness is flexibility. Flexibility is defined as the capability to movea joint effortlessly through its full Range of Motion (ROM). The Flexibility of a particular joint can be influenced by many factors including the bony alignment and structures surrounding the joint. For illustration, there is a significant difference in the biomechanics of the elbow and the shoulder joint because of their different joint types. A hinge joint and a ball and socket variety of joints can’t move in the same way. Other potential elements that can influence joint mobility and flexibility include age, activity level, gender, health status, and characteristics of the surrounding soft tissues including muscles, tendons, etc. Females usually have more flexible joints; however, exceptions may exist. Irrespective to gender flexibility tends to decline with age . Hamstring muscles are constituted by a group of four muscles, three of them share a common origin that is from the ischial tuberosity and then diverged to connect to the distal part of the knee joint. In addition to knee flexion and extension, the hamstrings also act at the hip joint to extend it and also play its part in girdle rotation it’s tilting and rotates sacrum too . For the assessment of flexibility of most commonly used measures are used which include the Active-Knee-Extension (AKE) and the straight-legraise test . A diverse variety of techniques are available to increase the length of the musculotendinous unit. Different techniques which can be incorporated include classical stretching techniques comprises of static (active, passive), dynamic (active, ballistic) stretching ways, Proprioceptive Neurolmuscular Facilitation (PNF) pre-contraction stretching, post-isometric relaxation) stretches (19) or myofascial techniques like myofascialunharness or Rolfing can be used .
The Graston Technique is one amongst the common soft tissue mobilization techniques associated is categorized as the associate Instrument-Assisted Soft Tissue Mobilization (IASTM). It treats a wide range of soppy tissue injuries, like sprains, strains, and general pathology of soppy tissues . Recently, foam rolling has become a preferred technique for skilled and non-professional athletes as a selfmassager and for self-myofascial allows running free. The technique involves little back and forth undulations over a dense Foam Roller (FR), directed from the proximal to the distal portion of the muscle or the different means around . The objective of this study was to find out the comparative effect of Graston technique and Foam roller on the flexibility of hamstring muscle. There is lot of studies which found the effects of graston technique and foam roller technique on hamstring muscle on individual basis. But there are very minimum studies which found the effects of these techniques on comparative basis for the flexibility of hamstring muscle.

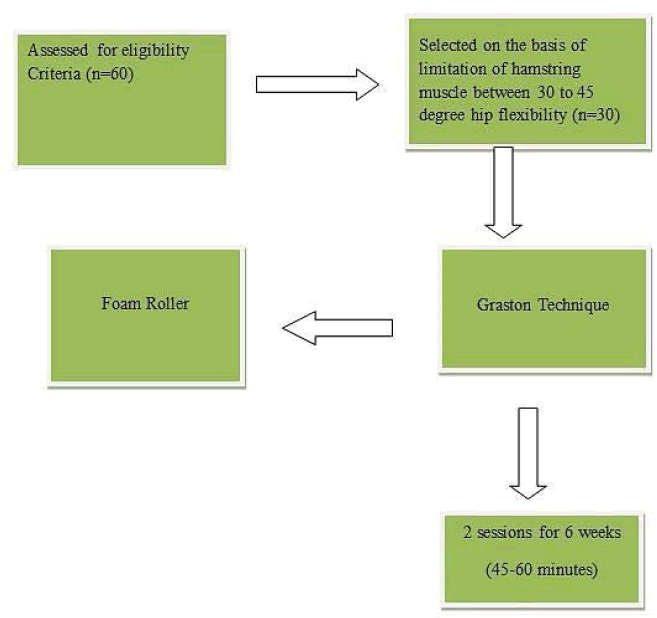

It was a randomized control study was which was carried out Isra University Karachi. After the ethical approval data was collected from selected participants. Sample was collected by simple random sampling and chitt method was used for randomization. A total of 30 students with informed consent were included in the study. Inclusion criteria involved both male and female with age range of 18-25, Students having limitation of hamstring muscle between 30 degree to 45 degree hip flexibility (90-90 straight leg raise test). While excluded were those who had any hamstring injury in the past 2 months, Students, who have any skin infections, had any surgeries on their lower extremities within the last 6 months and Had lumbar disc herniation (Leg raise test). Data was collected through Universal Goniometer (Baseline HiResTM 12- 1000HR), Graston Instrument (GT-1) and FoamRoller (Length 3 ft and width 5.5 inch). 30 subjects having short hamstring were randomized into 2 equal groups with 15 subjects in each group. In both groups, shortening of hamstrings was identified by Goniometer. Assessment Performa was filled up by the therapist and measurement on the first day (pre-test scores) before starting the treatment. The patients in group A received Graston Technique while group B was treated with Foam Roller. Treatment duration was 2 sessions per week for six weeks . Data were stored and analyzed using IBM-SPSS version 23.0. Count and percentages were reported for baseline characteristics of studied samples. Mean with standard deviation reported for flexibility of hamstring muscle at day-01 and day-12. Paired sample t-test was used to measure the effect of treatments. One way analysis of variance was also done to compare the post treatment scores across two treatment groups. p-values less than 0.05 were considered significant. Bar chart also used to give graphical presentation of data (Figures 1-3).
Table 1 reports the baseline characteristics of studied samples. In the present study there were 30 subjects divided into two treatment groups. Each treatment group contains 15 subjects among them 46.7% were male samples and 53.3% were female samples. In Mysofascial Release group the mean flexibility at day-01 was 56.73 ± 8.97 and at day-12 it was 65.87 ± 9.49, results showed 9.13 units significant increase was observed in flexibility of hamstring muscle at day-12 with p-value less than 0.01. Table 2 and Table 3 gives the mean comparison of flexibility of hamstring muscle of patients at day-01 of treatment and at day-12 of treatment. In Graston group the mean flexibility at day-01 was 52.60 ± 9.14 and at day -12 it was 65.47 ± 9.41, results showed 12.86 units significant increase was observed in flexibility of hamstring muscle at day-12 with p-value less than 0.01.
|Gender||Graston (n=15)||Myofascial Release (n=15)|
Table 1. Baseline Characteristics of Samples (n=30)
|*p<0.05 was considered significant using Paired Sample t-test|
Table 2. Mean Comparison of flexibility of hamstring muscle
|p-value obtained using one way ANOVA|
Table 3. Mean Comparison of post Flexibility of Hamstring Muscle among Treatments
The aim of the study was to check the effectiveness of Graston technique and foam roller on the flexibility of hamstring muscle. The incidence of tightness of hamstring muscle is one of the typical finding in the individuals with sedentary life style. It is treated by a wide range of Physical therapy methods and diagnosed by physical examination.
Findings of the current study revealed that participants receiving Graston technique showed improvement in flexibility of hamstring muscle of patients at day-01 of treatment and at day-12 of treatment. In Graston group the mean flexibility at day-01 was 52.60 ± 9.14 and at day-12 it was 65.47 ± 9.41, results showed 12.86 units significant increase was observed in flexibility of hamstring muscle at day-12 with p-value less than 0.01.
In year 2016 a study was done by Jong Hoon Moon et.al to research the result of Graston Technique on hamstring extensibility and pain intensity in patients with nonspecific low back pain. Each teams showed a big improvement once intervention. Compared to the static stretching group, the Graston technique group had considerably a lot of improvement in hamstring extensibility. They ended that the Graston Technique may be an easy and effective intervention in nonspecific low back pain patients to improve hamstring extensibility and lower pain intensity, and it might be helpful in clinical apply .
A study was done in 2016 by Fousekis K et al. and ended that MTrPs analysis and treatment may be difficult condition for each the sports physical therapists and athletes. Ergon © IASTM, cupping, and ischemic pressure techniques are effective, however not comparable, in reducing tenderness of Myofascial Trigger Points (MTrPs). Ergon© IASTM technique appear to has considerably higher leads to reducing the adverse effects of MTrPs than each different 2 techniques as its application resulted in an exceedingly meaning applied statistical improvement of pain symptoms .
Findings of the current study revealed that participants receiving foam roller technique showed improvement in flexibility of hamstring muscle of patients at (Mysofascial Release group) the mean flexibility at day- 01 was 56.73 ± 8.97 and at day-12 it was 65.87 ± 9.49, results showed 9.13 units significant increase was observed in flexibility of hamstring muscle at day-12 with p-value less than 0.01.
In the year 2016 a study was done by Daniel Junker et al. and concluded that foam roll is often seen as a good tool to extend hamstring flexibility inside four weeks. The results area unit comparable the scientifically established contract-relax PNF stretching methodology [10,11].
In the year 2015 a study was done by Scott W. Cheatham et al. and concluded that the results of SMR remains rising. The results of this analysis suggests that foam rolling and roller massage is also effective interventions for enhancing joint storage and pre and post exercise muscle performance. However, as a result of the no uniformity of ways among studies, there presently isn’t any agreement on the optimum SMR program.
It has been concluded from the study that both techniques Graston technique, and foam roller were found to be effective in the treatment of the flexibility of hamstring muscle but Graston technique was found to be more effective as compared to muscle foam roller in the patients with hamstring muscle tightness.
- Shakya N.R., Manandhar S.: Prevalence of hamstring muscle tightness among undergraduate physiotherapy students of Nepal using passive knee extension angle test. Int J Sci Res Pub. 2018;8:182-7.
- Carlson C.: The natural history and management of hamstring injuries. Current reviews in musculoskeletal medicine. 2008;1:120-3
- Koli B.K., Anap D.B.: Prevalence and severity of hamstring tightness among college student: A cross sectional study. Int J Clin Biomed Res. 2018:65-8
- Salminen J.J., Pentti J., Terho P.: Low back pain and disability in 14‐year‐old schoolchildren. Acta paediatrica. 1992;81:1035-9
- Graston Technique M1-Basic Training. Graston technique M1-basic training seminar, 2012. National University of Health Sciences.
- Paolini J.: Review of myofascial release as an effective massage therapy technique. Int J Athletic Therapy Training. 2009;14(5):30-4
- Gulick D.T.: Influence of instrument assisted soft tissue treatment techniques on myofascial trigger points. J Bodywork Movement Therap. 2014;18:602-7
- Moon J.H., Jung J.H., Won Y.S., et al.: Immediate effects of Graston Technique on hamstring muscle extensibility and pain intensity in patients with nonspecific low back pain. J Phy Therapy Sci. 2017;29:224-7
- Fousekis K ., Kounavi E., Doriadis S., et al. The effectiveness of instrument-assisted soft tissue mobilization technique (ergonš technique), cupping and ischaemic pressure techniques in the treatment of amateur athletes΄ myofascial trigger points. J Nov Physiother S. 2016;3:1-7
- Junker D.H., Stöggl T.L.: The foam roll as a tool to improve hamstring flexibility. J Strength Conditioning Res. 2015;29:3480-5
- Cheatham S.W., Kolber M.J., Cain M., et al.: The effects of self‐myofascial release using a foam roll or roller massager on joint range of motion, muscle recovery, and performance: a systematic review. Int J Sports Phy Therapy. 2015;10(6):827.
